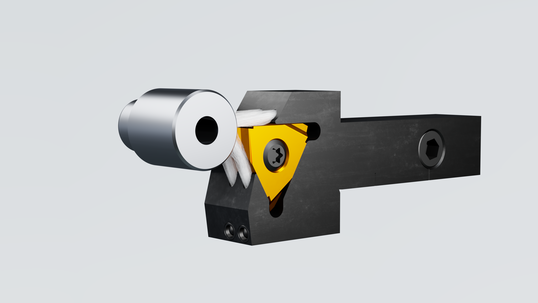

Square shaft holder for exchangeable insert type PWP s=5, insertion angle 8°

  • With internal coolant supply straight to the cutting edge
  • With 3 coolant connections (rear, left, right)
  • Additional coolant transfer from below (bore Ø5 + elongated hole)
  • Shaft cross-section 16 x 16 - 25 x 25

Square shaft holder for exchangeable insert type PWP s=5, insertion angle 0°

  • With internal coolant supply straight to the cutting edge
  • With 3 coolant connections (rear, left, right)
  • Additional coolant transfer from below (bore Ø5 + elongated hole)
  • Shaft cross-section 12 x 12 - 25 x 25

Square shaft holder for exchangeable insert type PWP s=5, insertion angle 8°

  • With internal coolant supply straight to the cutting edge
  • With 3 coolant connections (rear, left, right)
  • Additional coolant transfer from below (bore Ø5 + elongated hole)
  • Shaft cross-section 16 x 16 - 25 x 25

Square shaft holder for exchangeable insert type PWP s=3 or s=5

  • Design according to customer requirements

Square shaft holder for insert type WEP 12.10 / 14.40 / 19.05 / 23.60 / 30.60

  • Right or left version
  • Shaft cross-section 12 x 12 - 25 x 25
